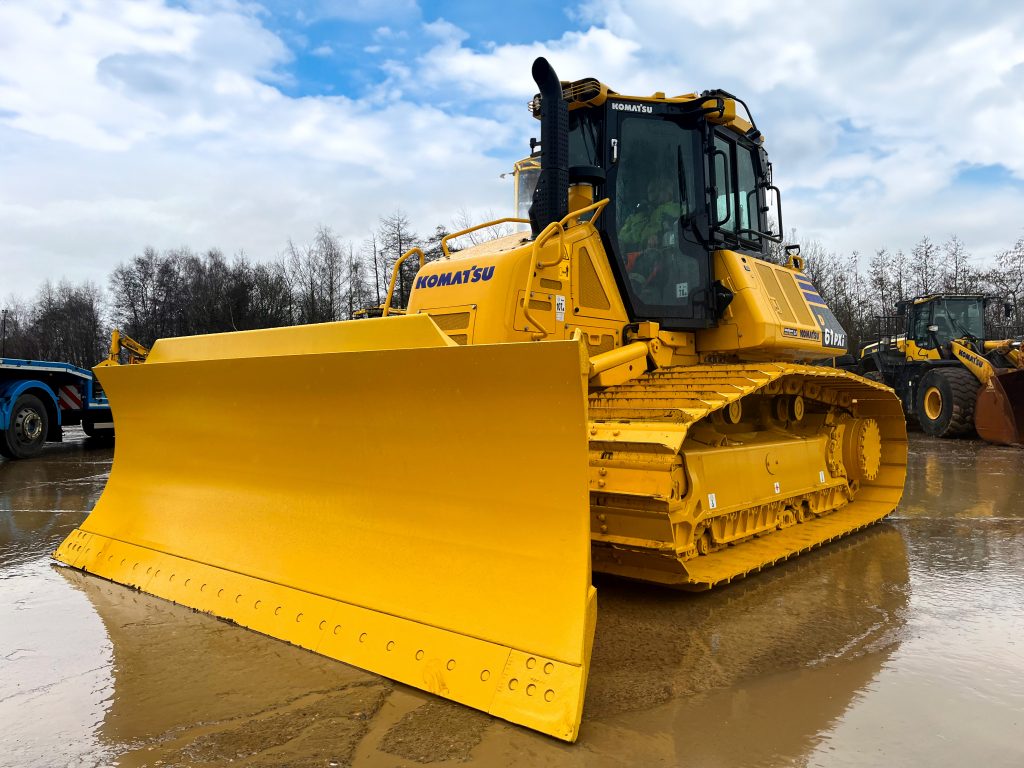

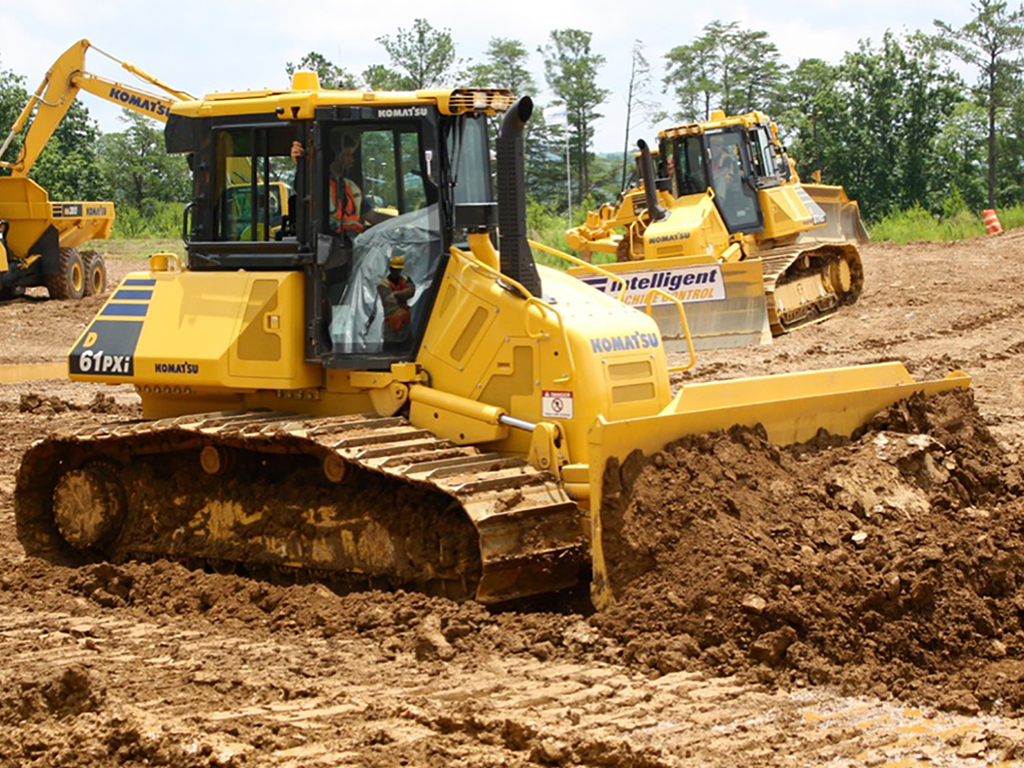

Komatsu D61PXi GPS Dozer

The Komatsu D61PXi GPS Dozer is an intelligent machine controlled crawler dozer.

Komatsu D61PXi GPS Dozer Features

  • Highly increased efficiency and productivity
  • Improved fuel economy
  • KOMTRAX, Komatsu Wireless Monitoring System
  • Tough and Reliable with Self-adjusting idler support
  • Powerful and Environmentally Friendly
  • Improved cab visibility
  • Various power modes
  • 7-inch high-resolution monitor

Quick Specification

Net Horsepower169 HP
Operating Weight        19.580 kg
Blade Capacity 3,8 m³

These intelligent dozers offer an outstanding improvement in productivity a fully automatic blade control function that performs both rough dozing and finish grade in automatic mode

Interested in this?
Enquire today





Please complete:   3 + 5 =


* Indicates required fields

Why is Factory Fitted Better?

Factory Fitted GPS Intelligent Machine Control is a much more robust solution, add-on components for machine control (like TopCon & Trimble applications) can involve fragile sensors bolted on where they can get damaged plus factory fitted eliminates the daily hassles of installing and removing antennas and cables and the wear associated with it.

Inside the Cab of Komatsu D61PXi Hire

The new high-comfort cab has an air suspension high back seat, adjustable and heated plus an upgraded high-resolution TFT-LCD machine monitor, with ECO/POWER mode selection and operator identification. For the operator’s convenience, a shovel holder was added to the back of the machine.

Komatsu has included a 7-inch high-resolution monitor which displays real-time fuel economy and diagnostics should the need to troubleshoot arise. The monitor also displays the view of the machine’s rear-view monitoring system.

Komtrax – state of the art remote monitoring system

Also included is the Komtrax telematics, Komatsu’s state of the art remote monitoring system which allows operators and site managers to keep up with the machine’s fuel levels, operating hours, location as well as monitoring DEF levels, ambient air temperatures and pressures.

Automated dozing from rough cut to finish grade

Komatsu dozers are very effective on construction sites. Site managers and operators are often under immense pressure to meet strict deadlines. Every pass counts, and Komatsu intelligent Machine Control optimises the entire dozing process to generate massive time & fuel savings.

The innovative machine control system on D61EXi/PXi-24 allows automated operation from heavy dozing to fine grading. It senses and controls the blade load to optimise the start of the cut and minimise track slip. Equipped dozers can greatly enhance work efficiency in any application, especially when a specific finished level must be guaranteed.

The system is fully integrated, there’s no need for operators to climb on the blade to install/remove GNSS antennas etc. The State-of-the-Art Controls include Komatsu’s Palm Command Control System joysticks (PCCS)

Powered by a 125 kW (168 HP), SAA4D107E-3, EU Stage IV emissions-certified engine with a “Heavy-duty” after treatment system, the D61EXi/PXi-24 emits up to 80% less nitrogen oxides (NOx) than a D61-23. This 6.8 litre diesel engine features a Komatsu Diesel Particulate Filter (KDPF) and a Selective Catalytic Reduction (SCR) system. The KVGT creates excellent engine response and helps to maintain a high level of passive regeneration, with no fuel wasted on cleaning the exhaust filters.


Plant can be supplied on a short term hire or Long Term Contract Hire.

All our plant equipment is modern and of the latest specification, well maintained and fully inspected for safety and reliability.

Due to continual investment in our fleet of plant hire equipment, we often have machinery for sale click here for details.

For more information on any of our machinery hire or sales – call us FREE on 0800 51 51 55 or fill in form below
