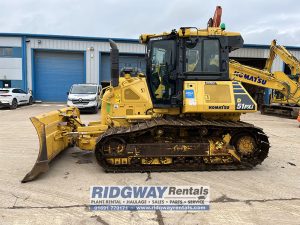

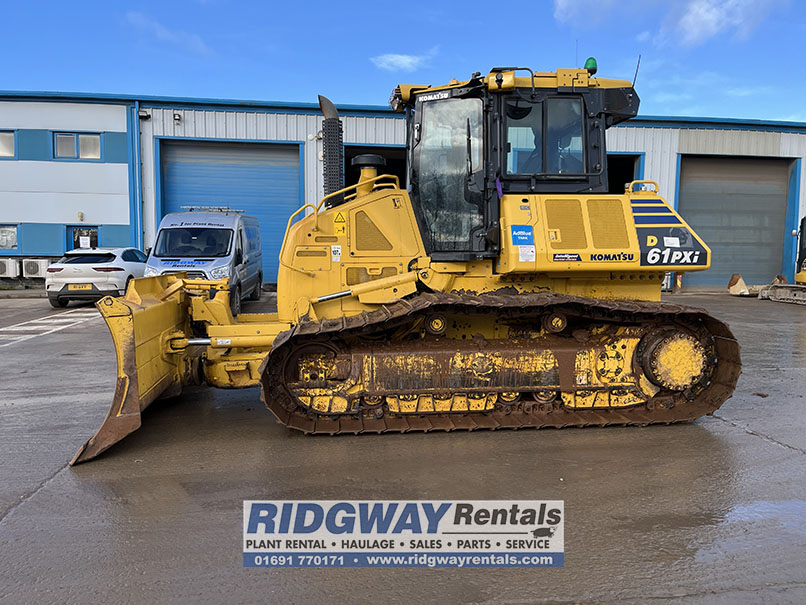

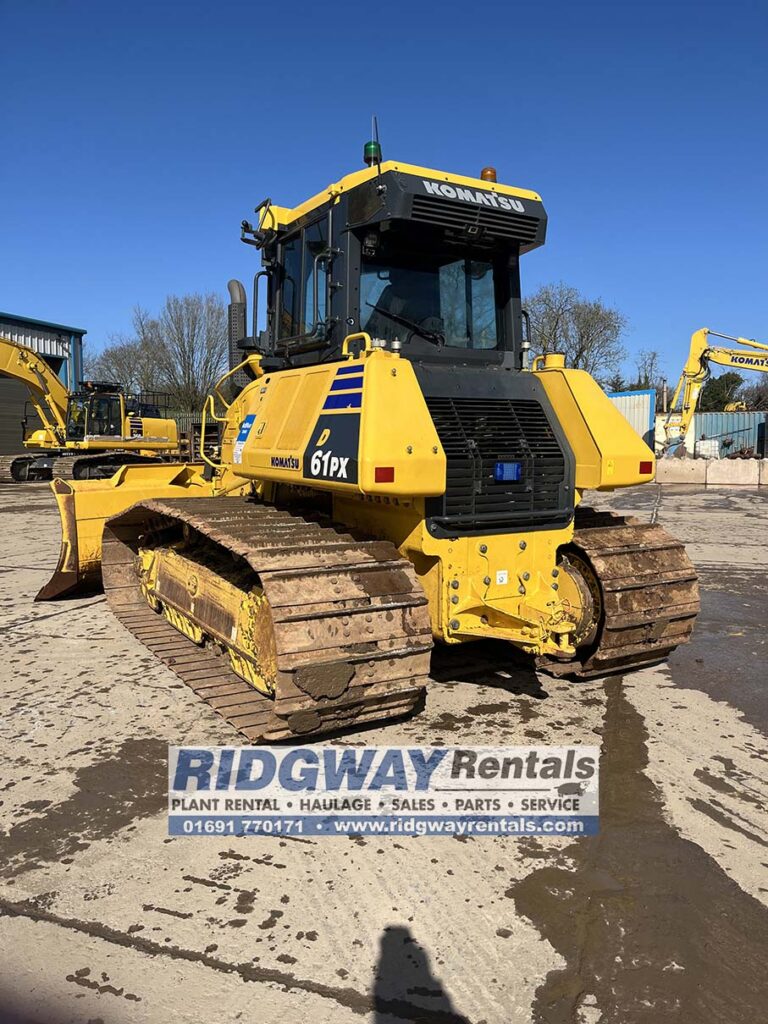

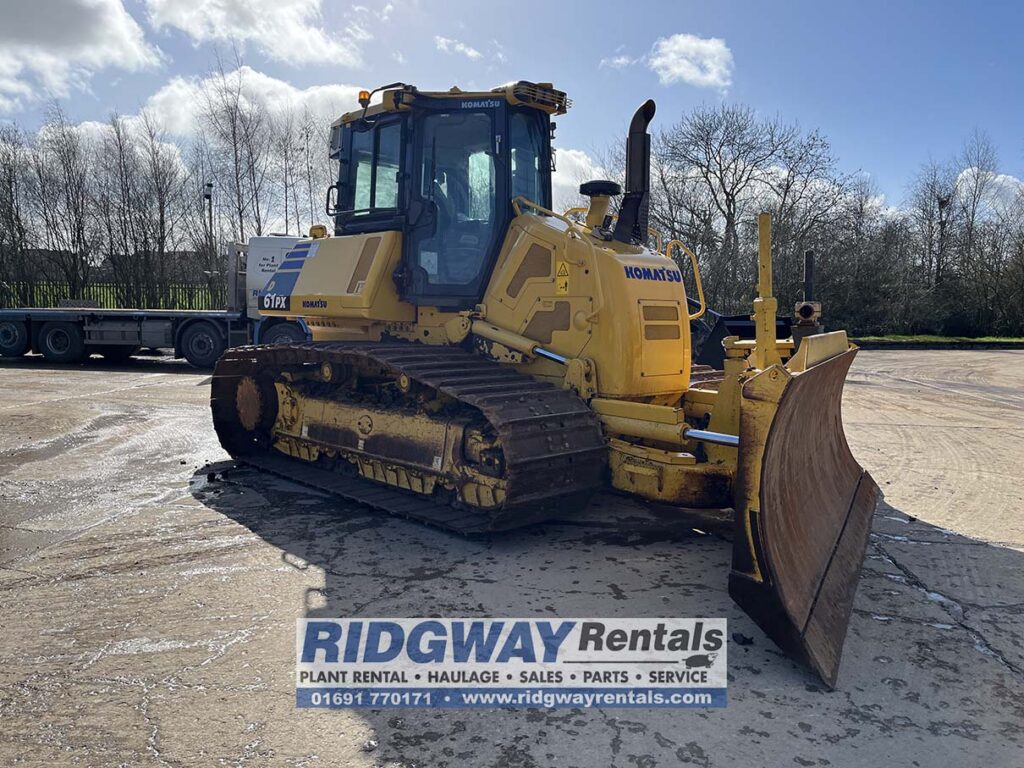

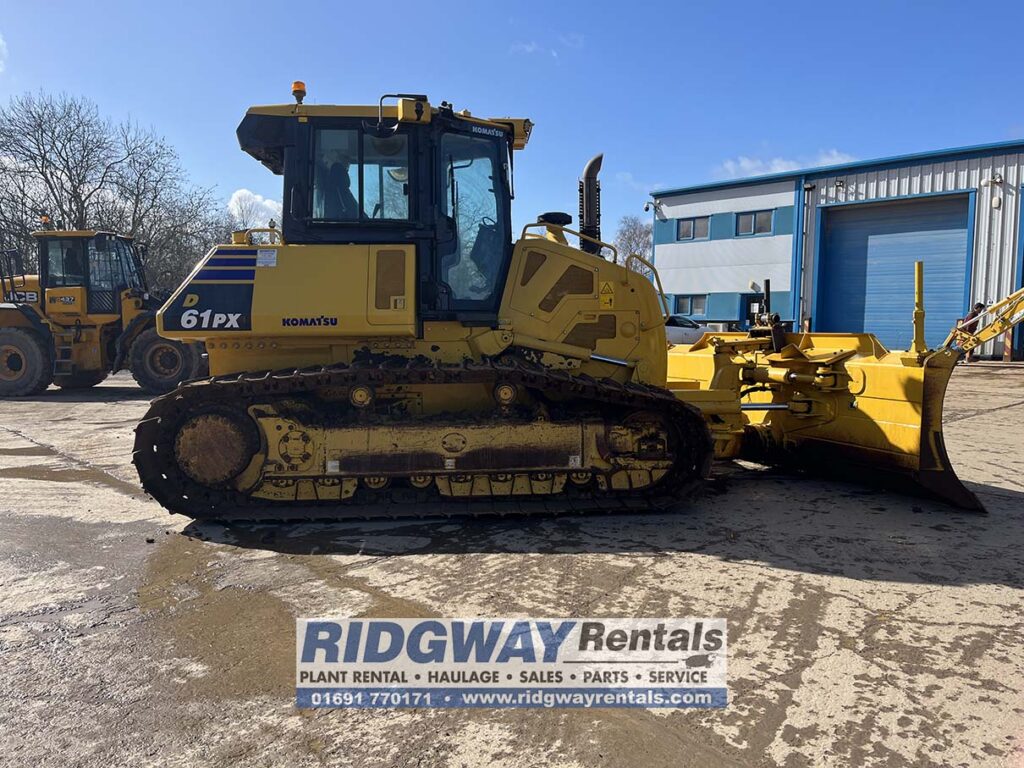

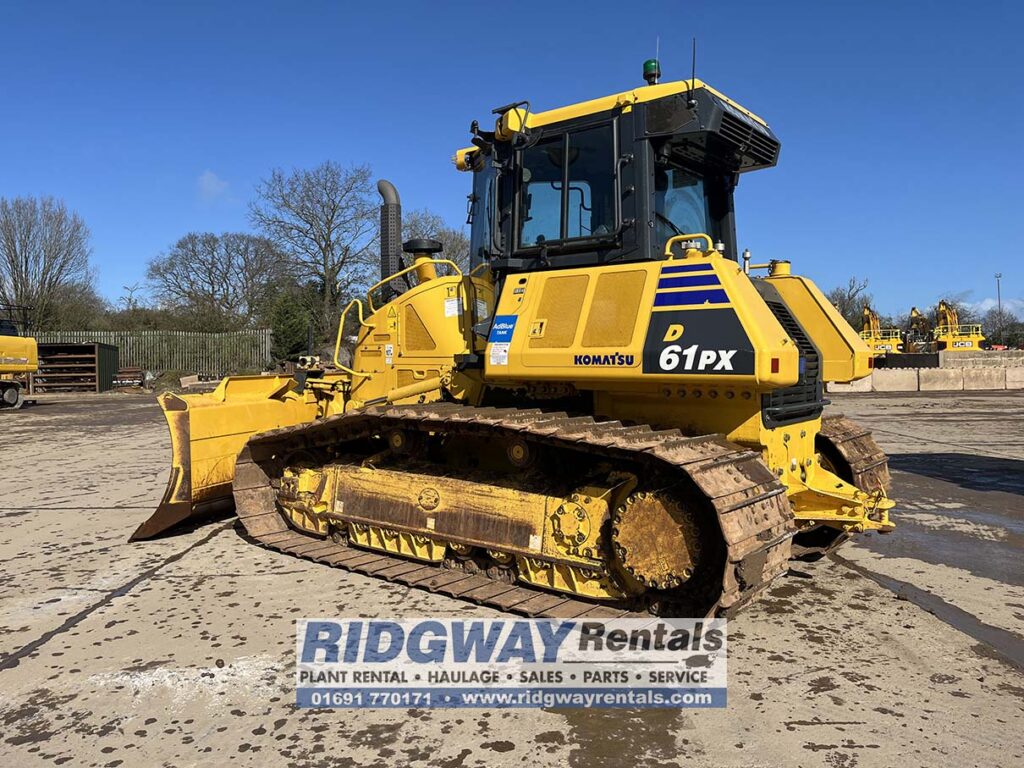

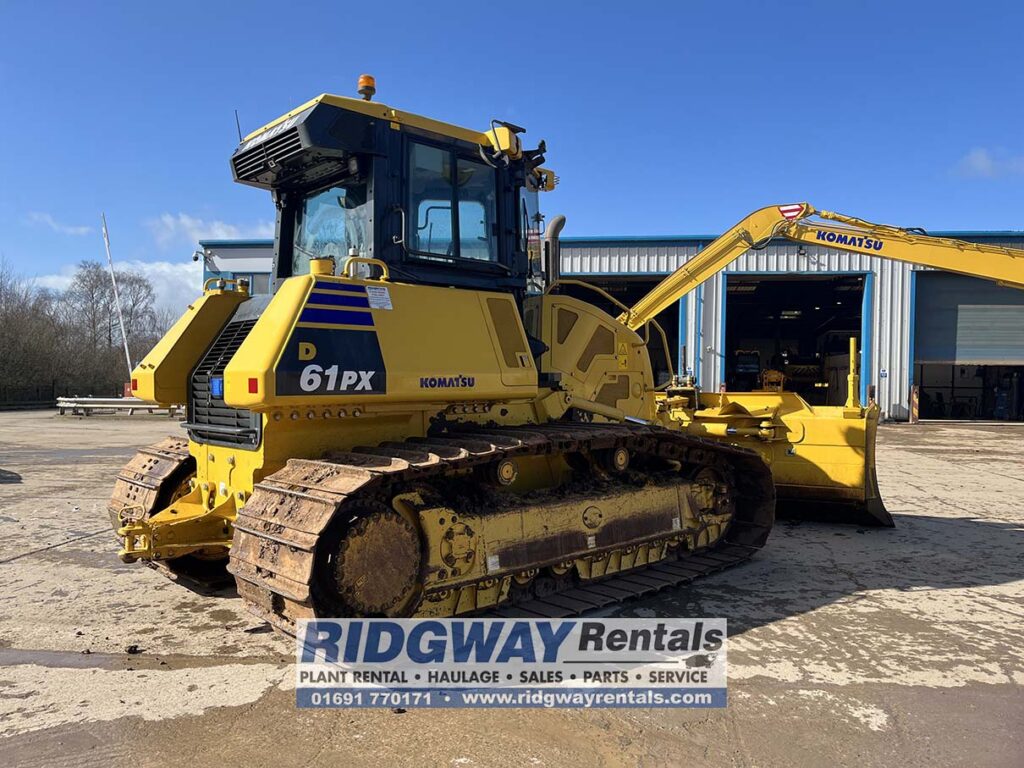

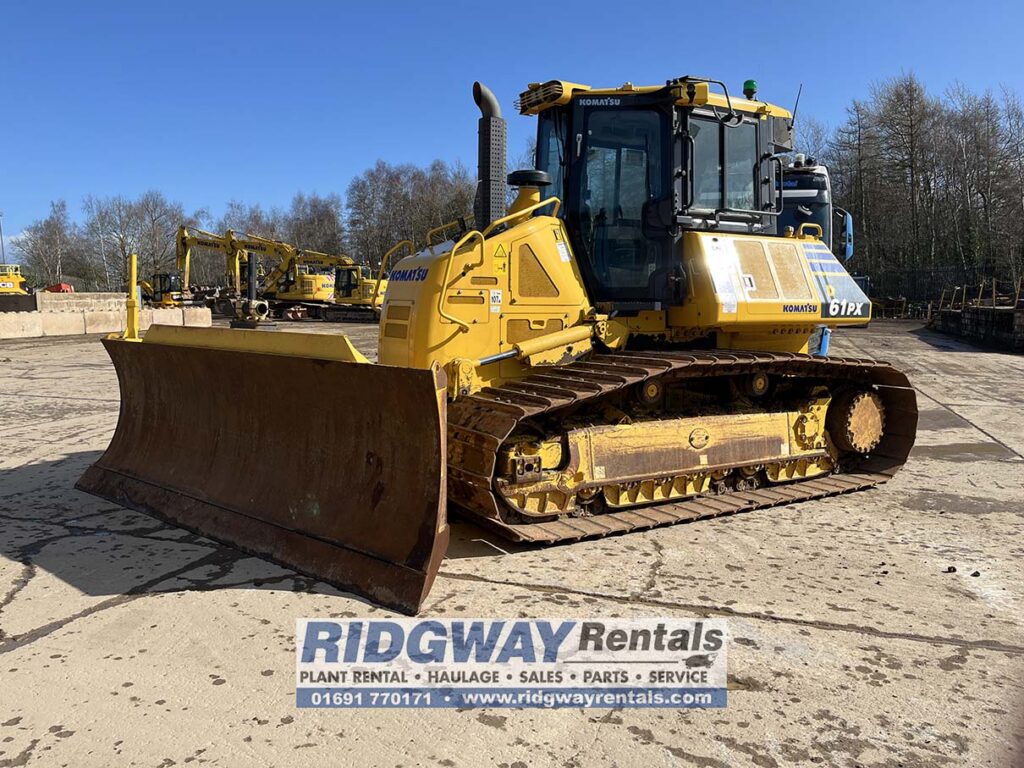

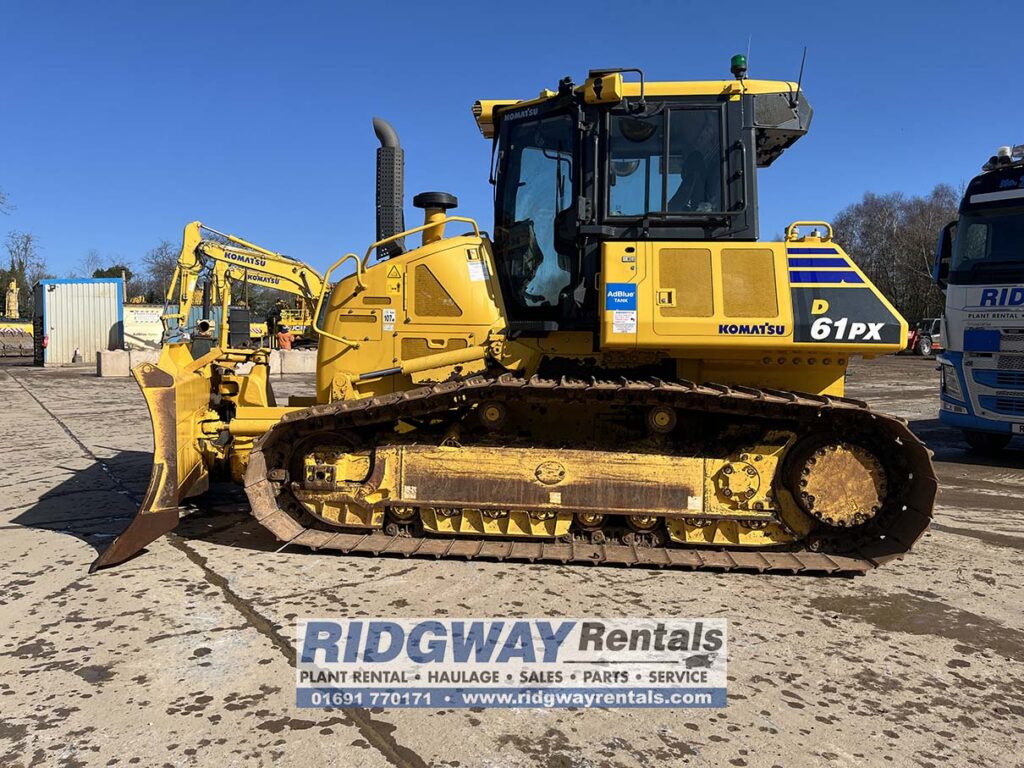

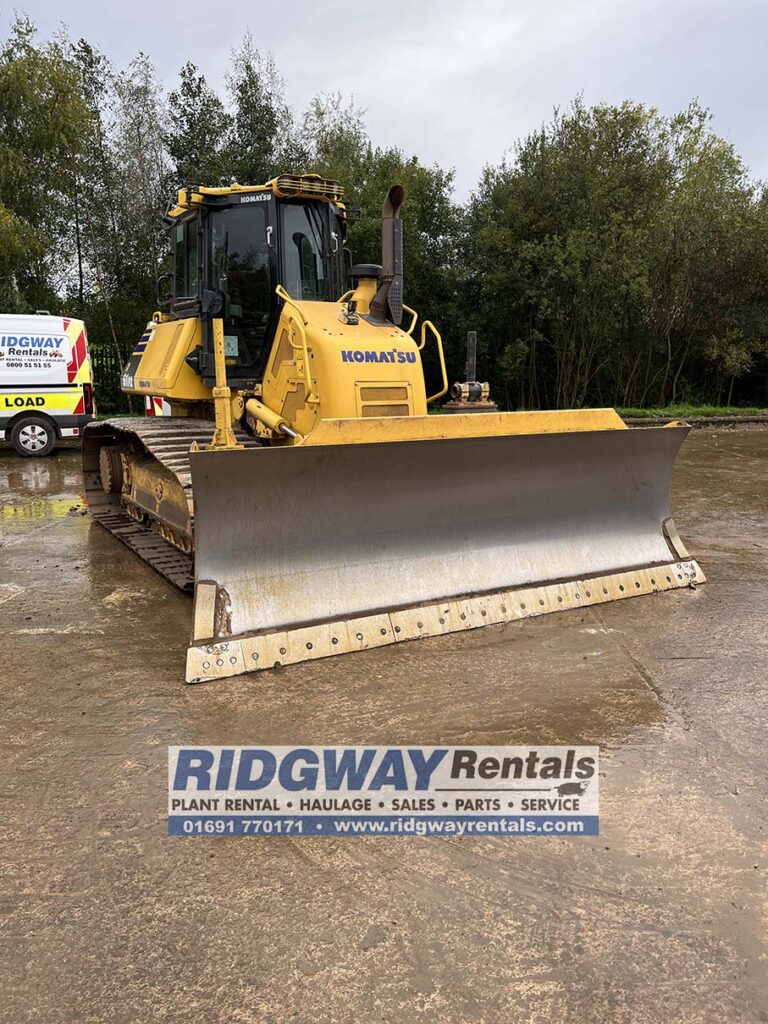

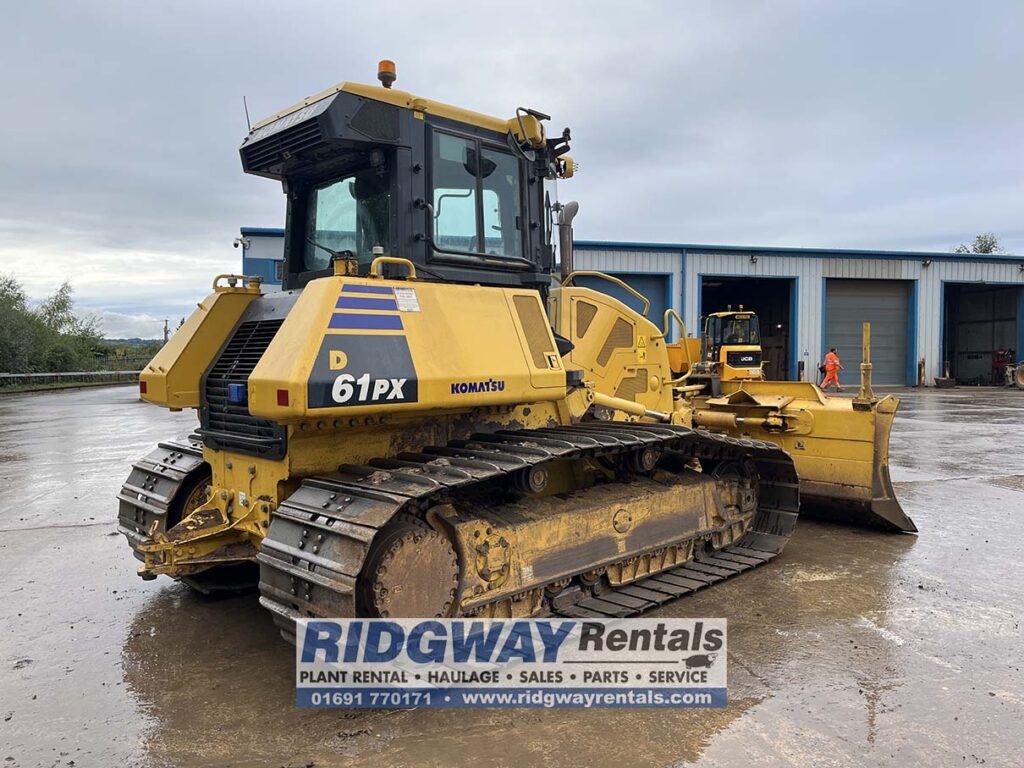

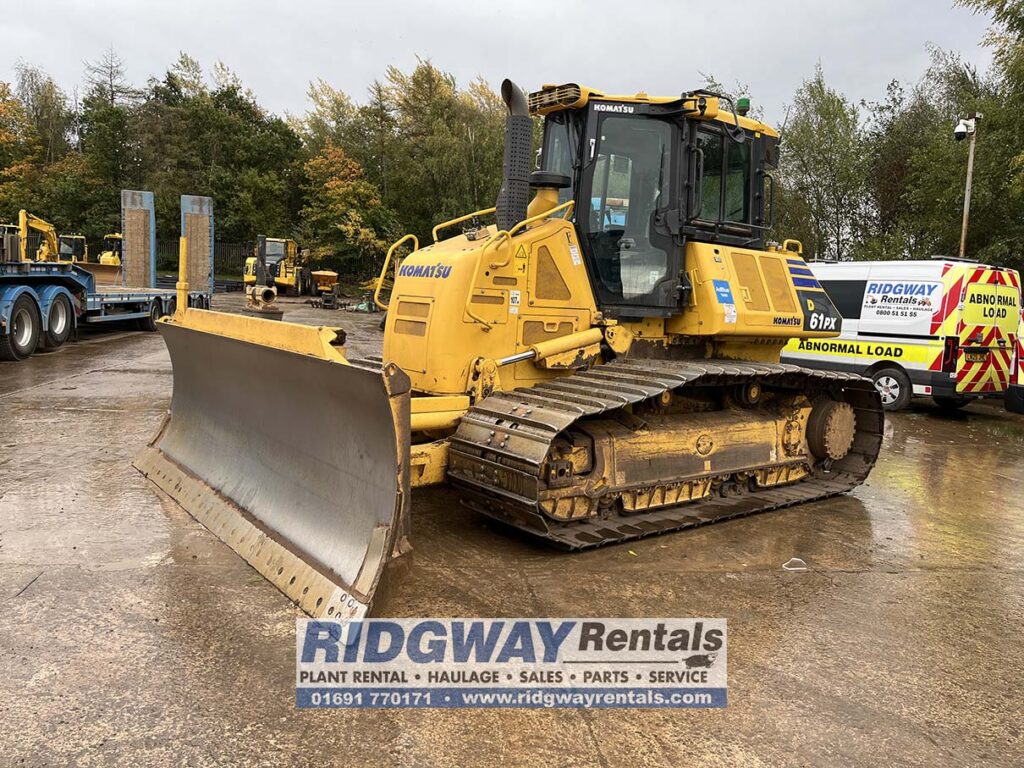

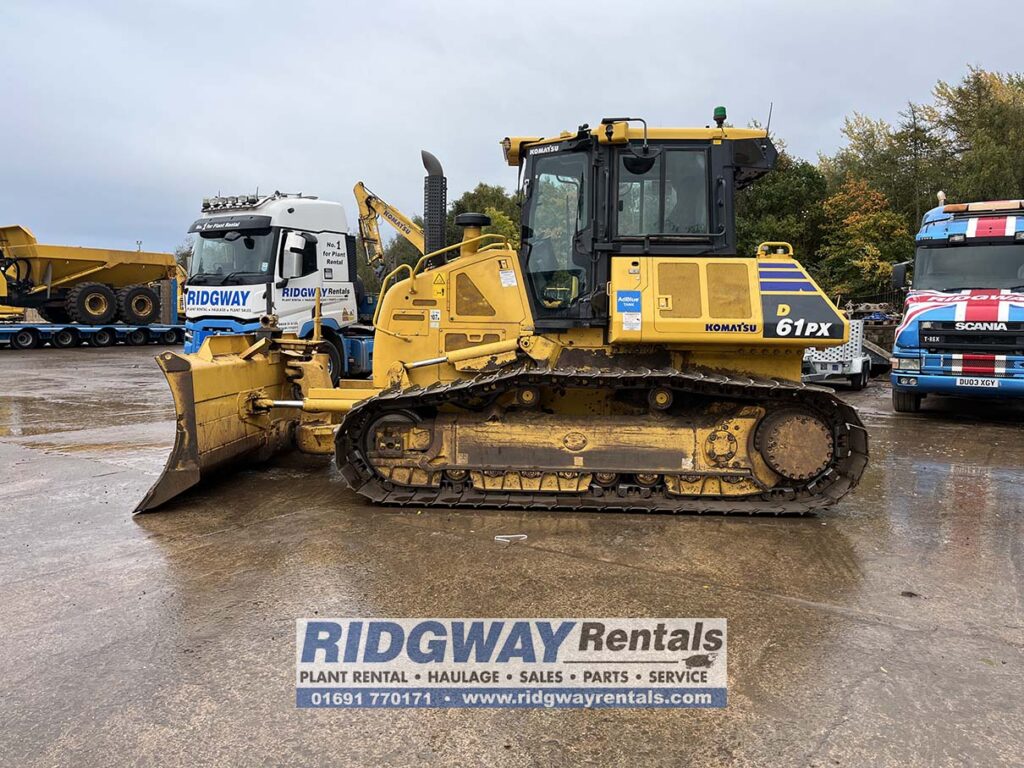

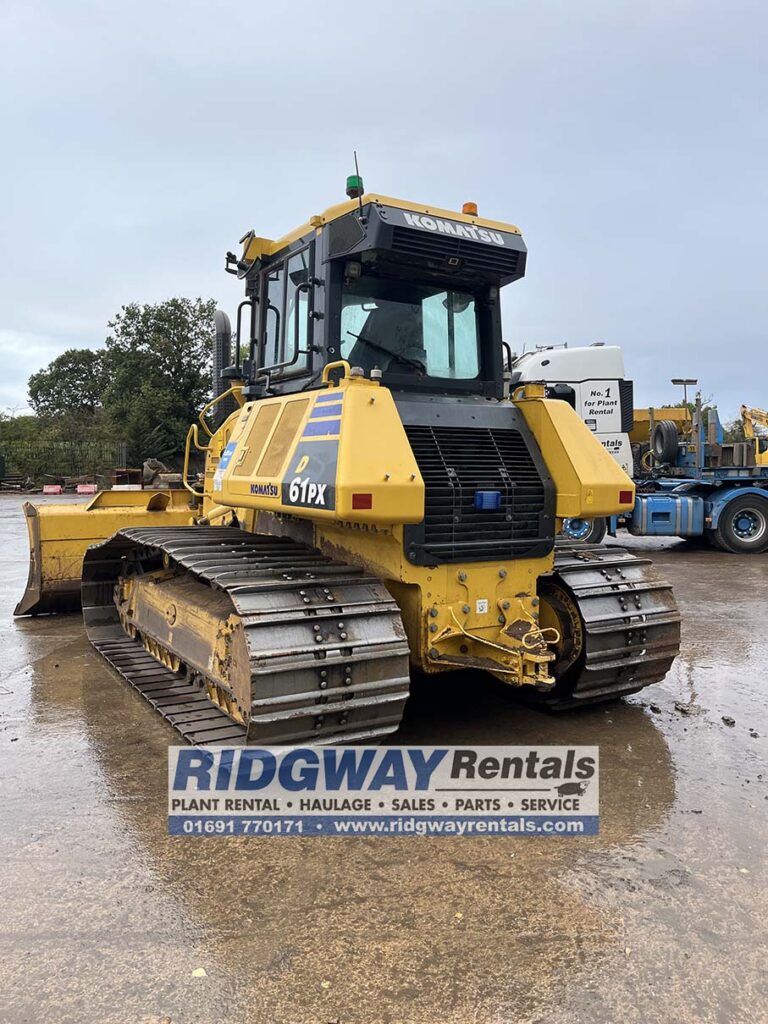

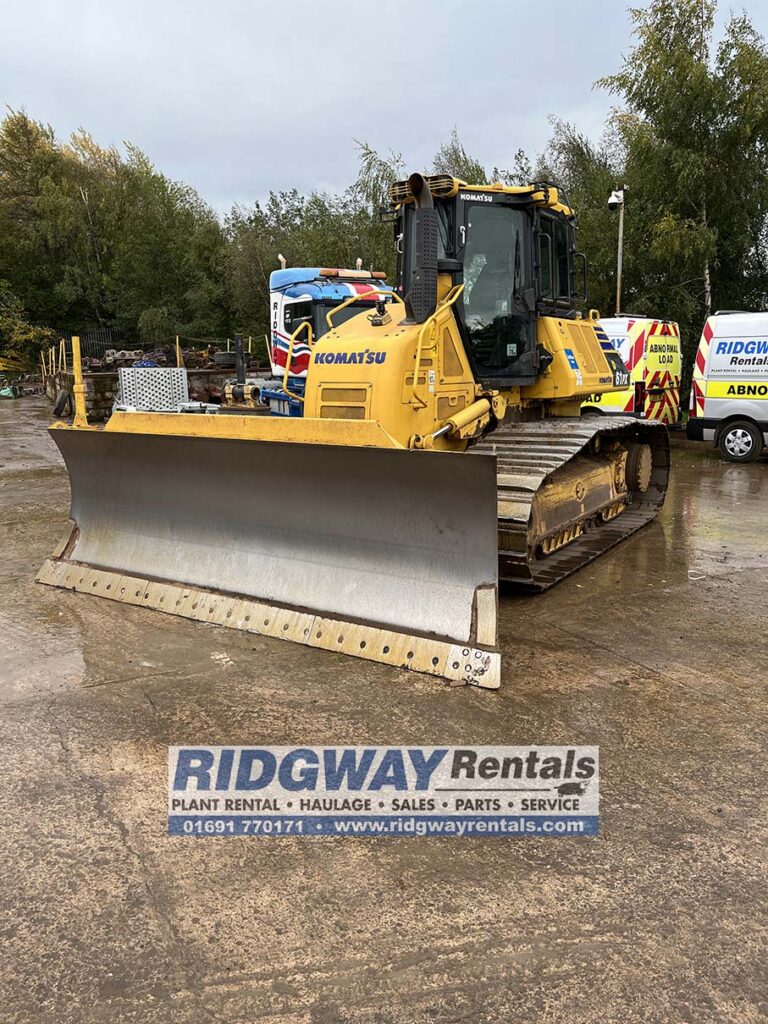

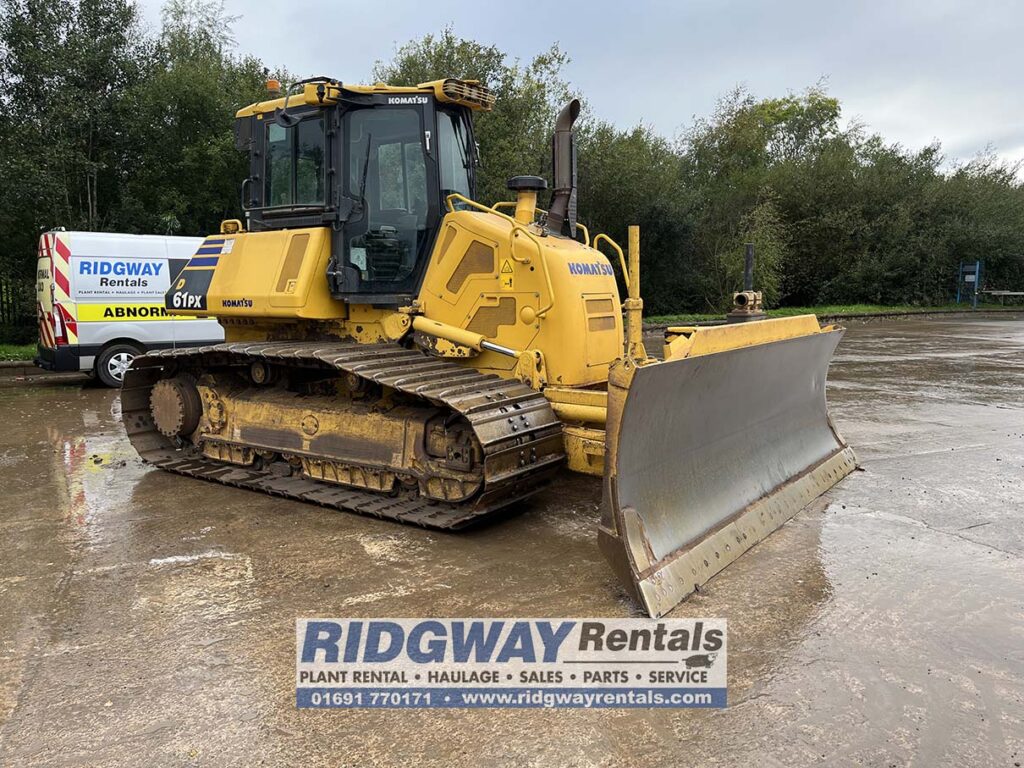

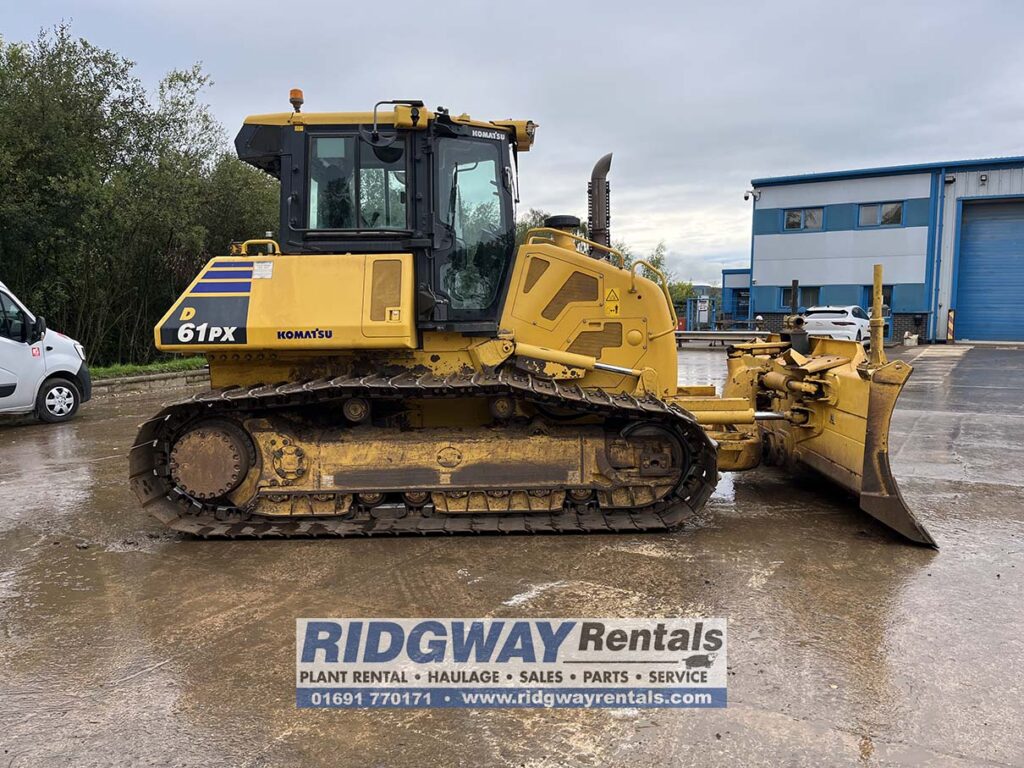

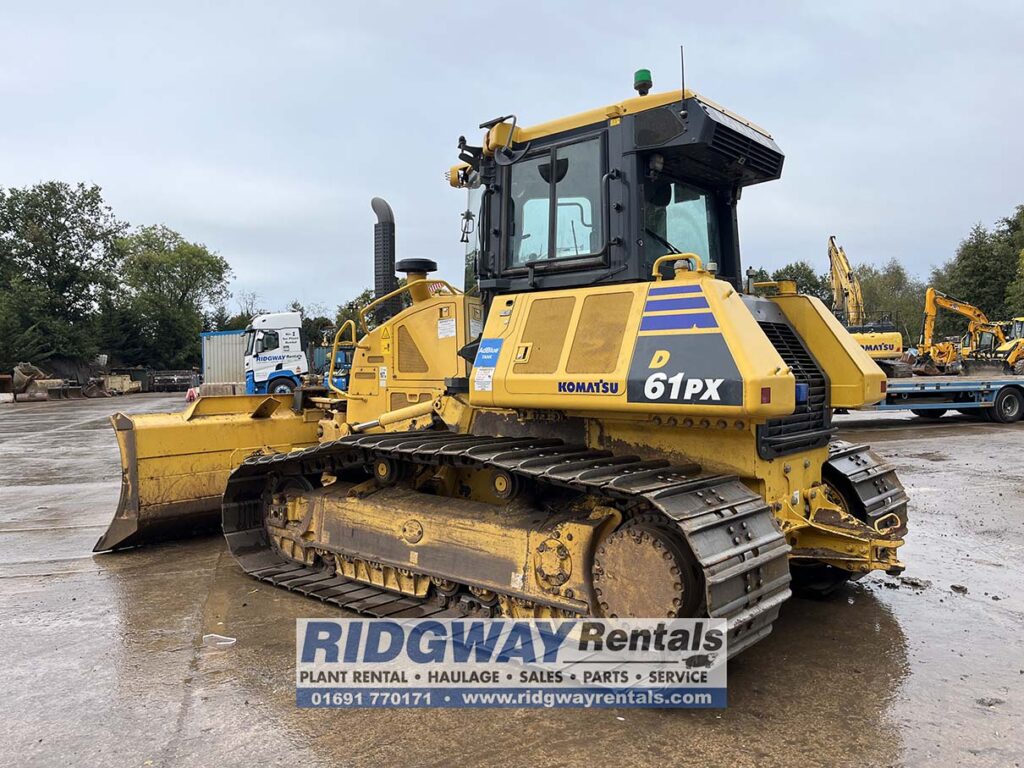

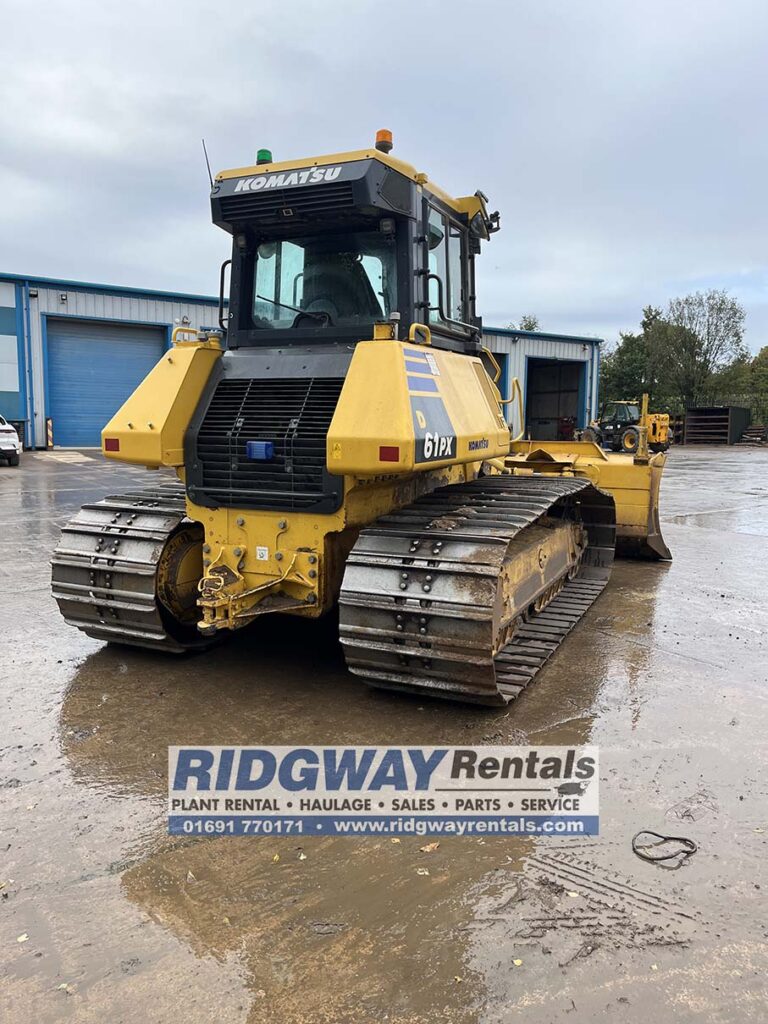

Ridgway Plant Sales are pleased to offer this Komatsu D61PXi-24 dozer for sale from our dozer hire fleet
Serial number 40427
- Year 2017
- 5,365 Hours
- GPS Intelligent Control

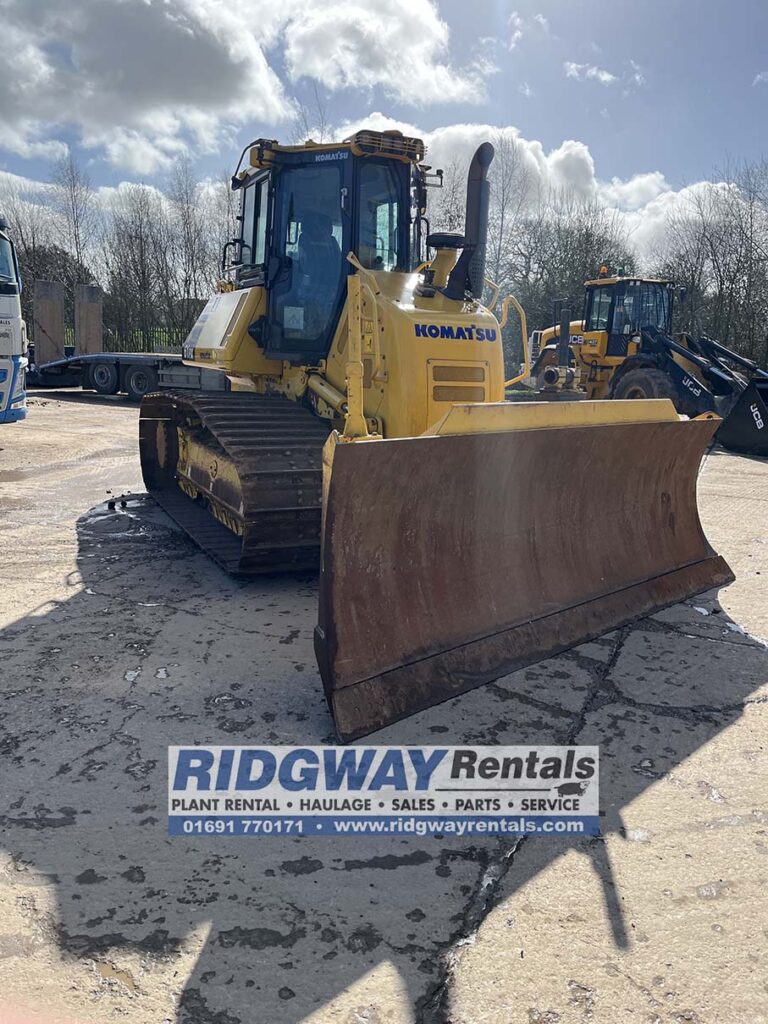

- PAT Blade (Power Angle Tilt)
- CE Certified
- Our Machine from New
- Full Komatsu Service History
This Komatsu D61PXi-24 dozer for sale is factory fitted with GPS Intelligent Machine Control
|Net Horsepower||169 HP|
|Operating Weight||19.580 kg|
|Blade Capacity||3,8 m³|
To arrange a viewing or for more information, call Stuart or Rachael on 01691 770171 or fill in form above.
Ridgway Rentals has a wide range of used plant sales, if you can’t see the machine you are looking for, please call us as we are constantly updating our Plant Hire Fleet.
Our used plant for sale is from our hire fleet and has been owned and maintained by us from new, has full service history and warranty (UK Mainland only)
Machinery is also available on a rent to buy scheme – contact us for more details. We also offer a full respray service.
We can arrange the shipping and delivery of all our used machines to any country in the world – contact us for a quote.
Nationwide Plant Hire
Plant available for hire ranges from a 1.5 up to a 50 Ton Excavators, including Long Reach, High Reach, GPS, Zero Swing & Wheeled. GPS Dozers, Loading Shovels, Dump Trucks, Dumpers, Rollers, Telehandlers along with many different attachments – click here.
For more information on this Komatsu D61PXi Dozer For Sale
Call us on 01691 770171 or FREE on 0800 515155
Komatsu D61PXi Dozer For Sale Specifications
The Komatsu D61PXi Dozer offers the best value, reliability and versatility for GPS dozers on the market today. The Hydraulics, power train, frame and all other major components are engineered by Komatsu and the engine meets EU Stage IIIA and EPA Tier III emissions regulations.

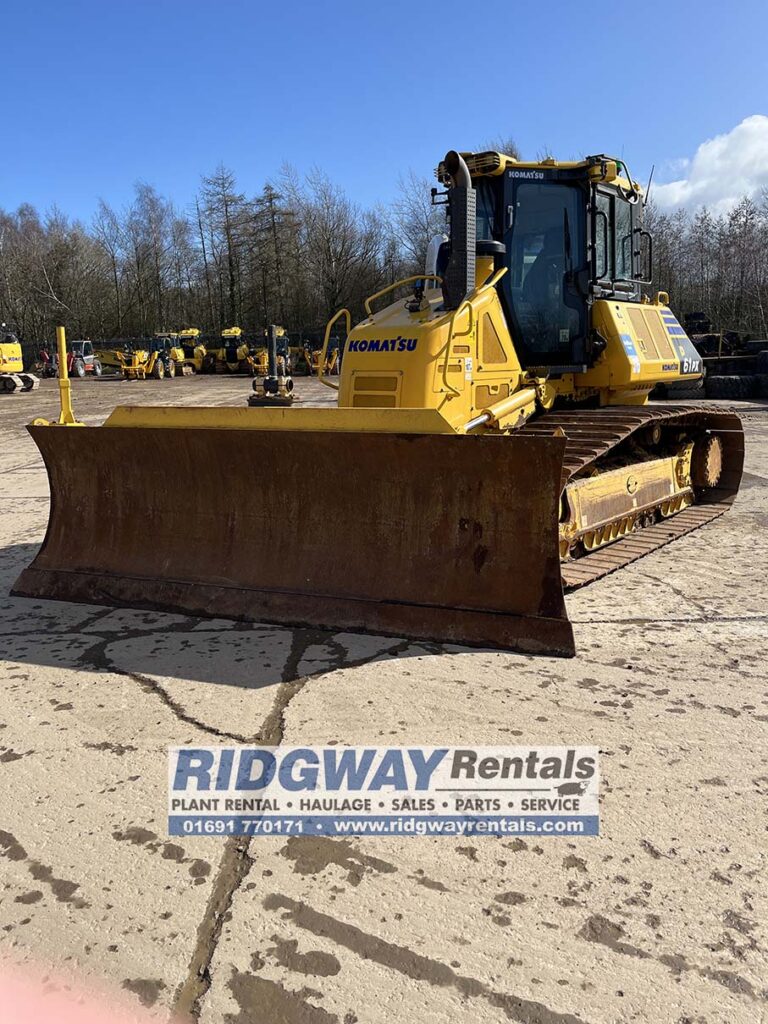

- Straight Power Angle Tilt (PAT) Blade
- Cab-forward design
- Integrated ROPS/FOPS Highest HP in its class
- Electronically-controlled hydraulically-driven fan
- Monitor with self-diagnostic function
Like all the latest Komatsu dozers, they follow the super-slant nose design due to rear-mounted cooler and are fitted with a high capacity power-angle-tilt blade.
Intelligent Machine Control
- 3D GNSS system
- Integrated & standard factory installed
- Automated operation from rough dozing to finish grade
- Highly increased efficiency

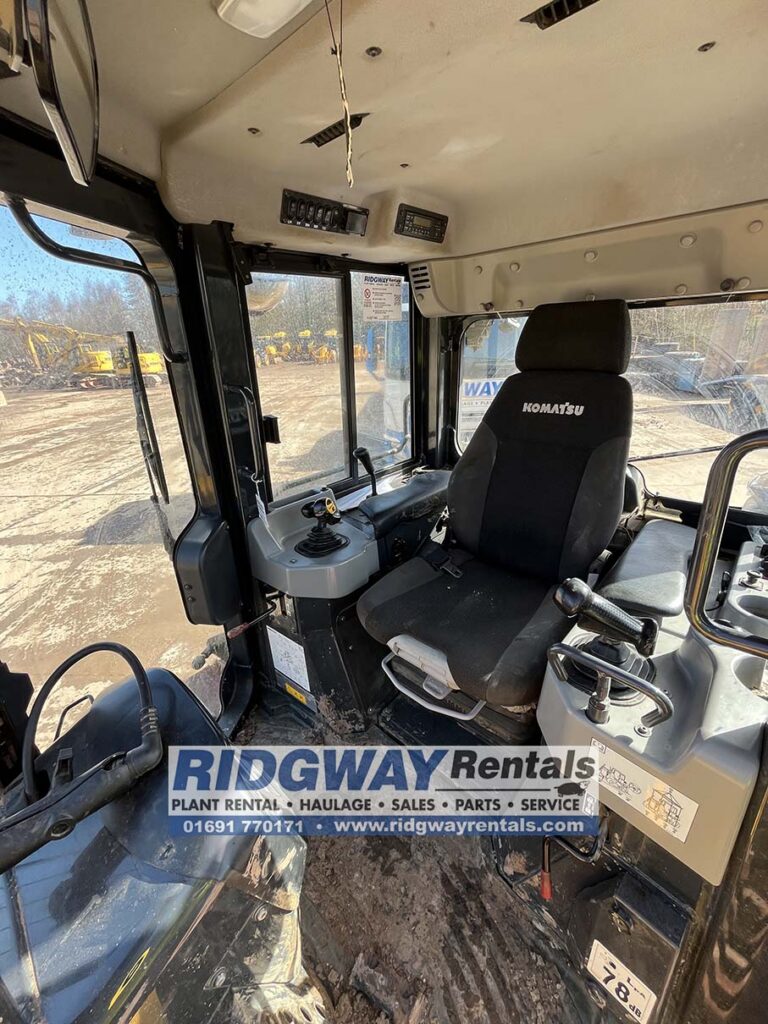

First-Class Operator Comfort
- Unique super-slant nose design

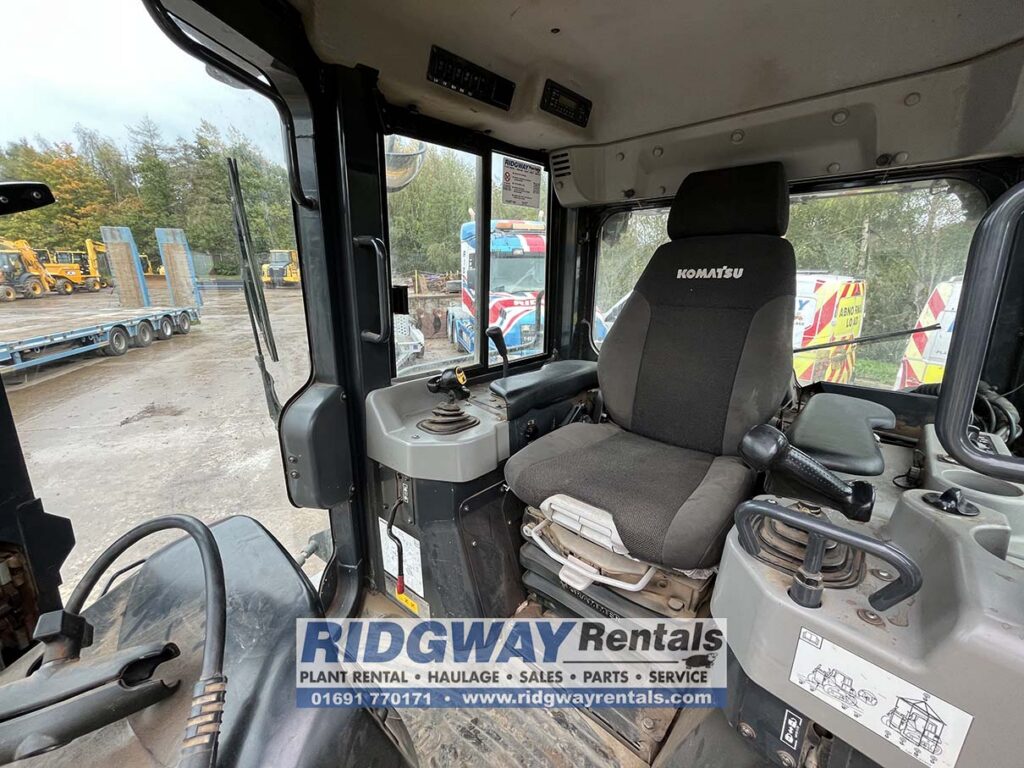

- Quiet and comfortable cab
- Fully adjustable air-suspended seat
Tough and Reliable
- Low-drive “PLUS” undercarriage
- Sturdy, rugged design with self-adjusting idler support

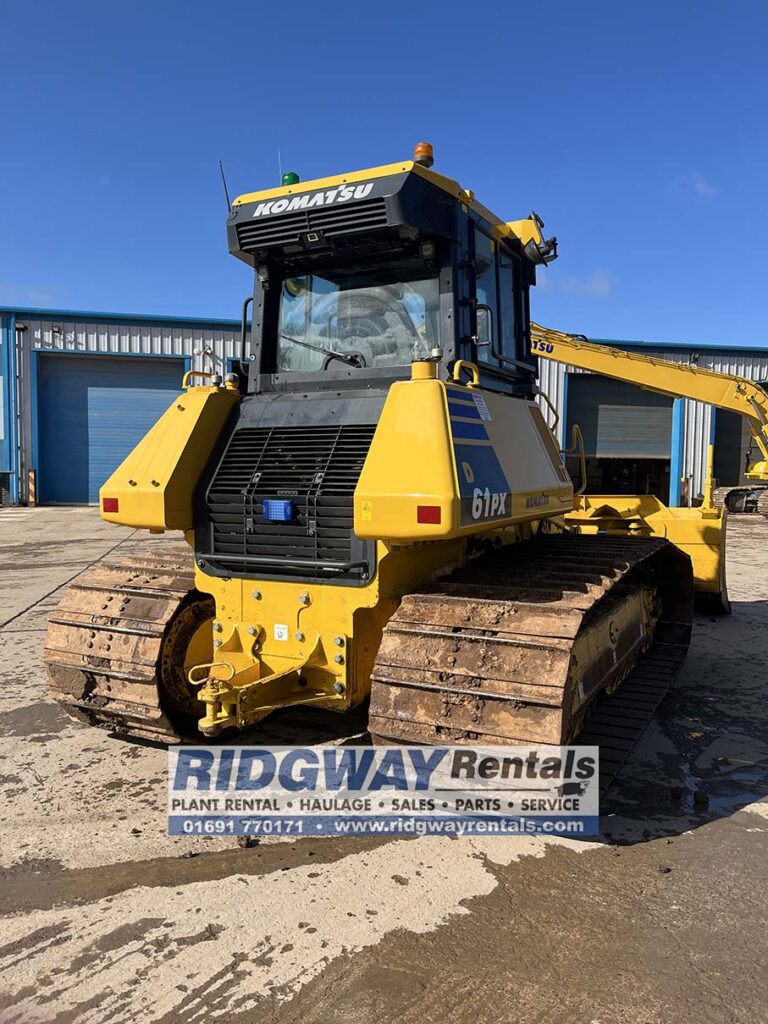

- Rear-mount radiator with swing-up hydraulic fan
Powerful and Environmentally Friendly
- EU Stage IV engine
- Highly efficient hydrostatic drive line (HST)
- Adjustable idle shutdown
- Palm Command Control System joysticks (PCCS)
- HST with automatic speed changes

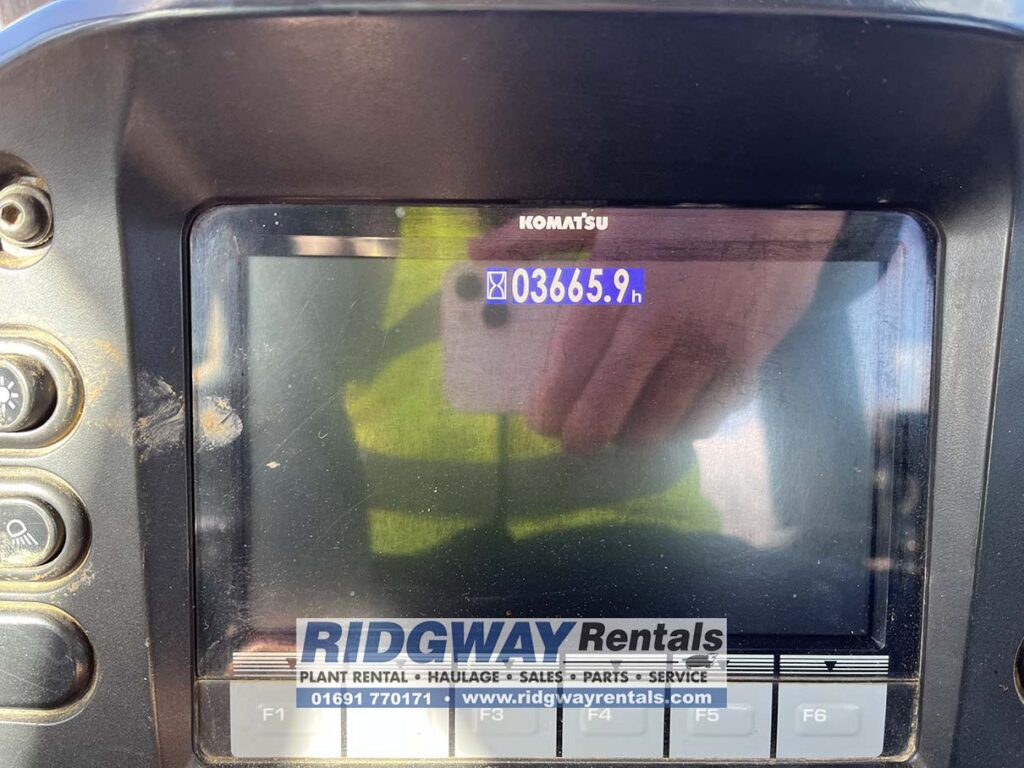

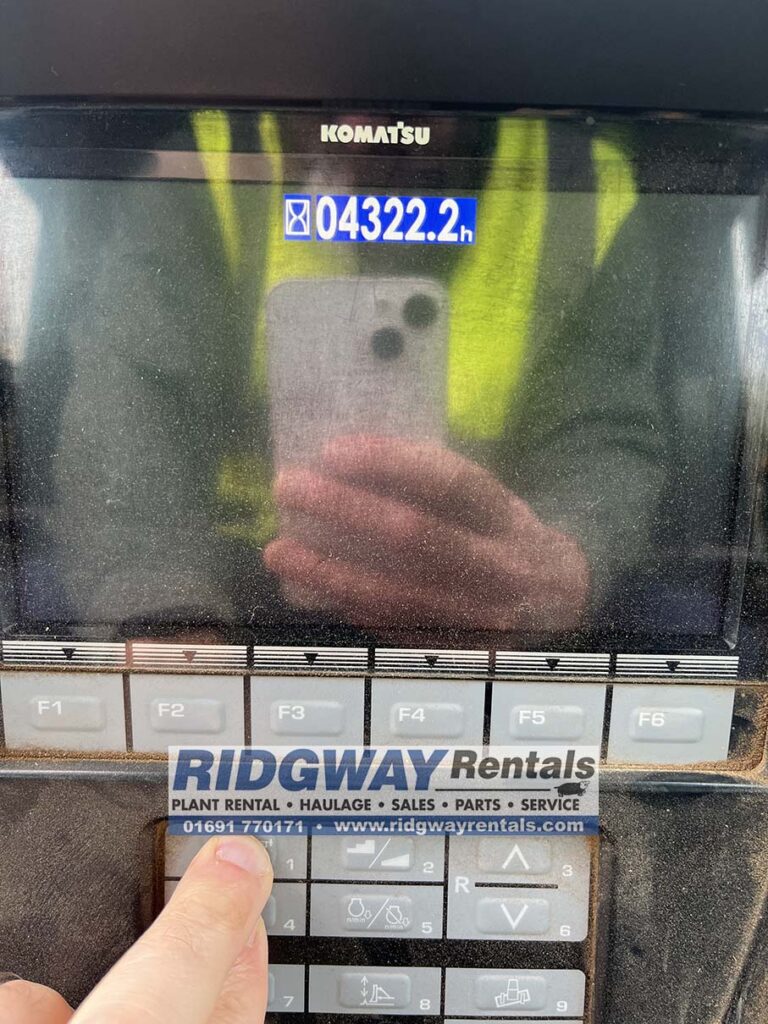

- Large TFT colour multi-monitor
- Komatsu Wireless Monitoring System
- 3G mobile communications
- Integrated communication antenna
- Increased operational data and fuel savings
Tough and Reliable Komatsu D61PXi Dozer For Sale

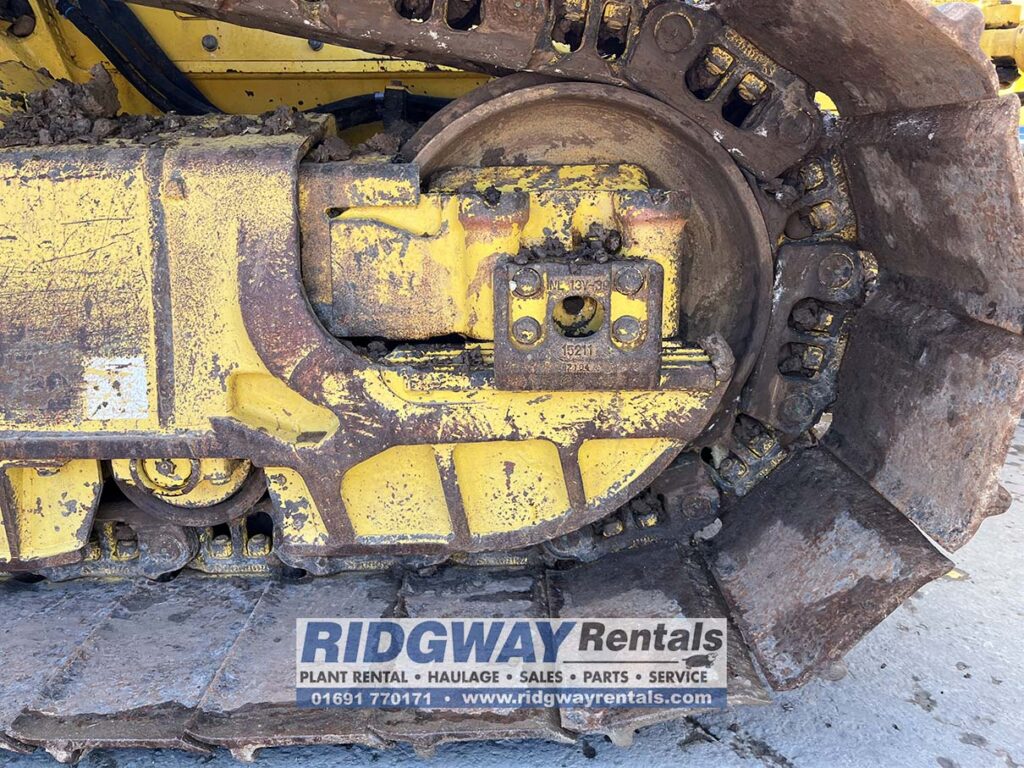

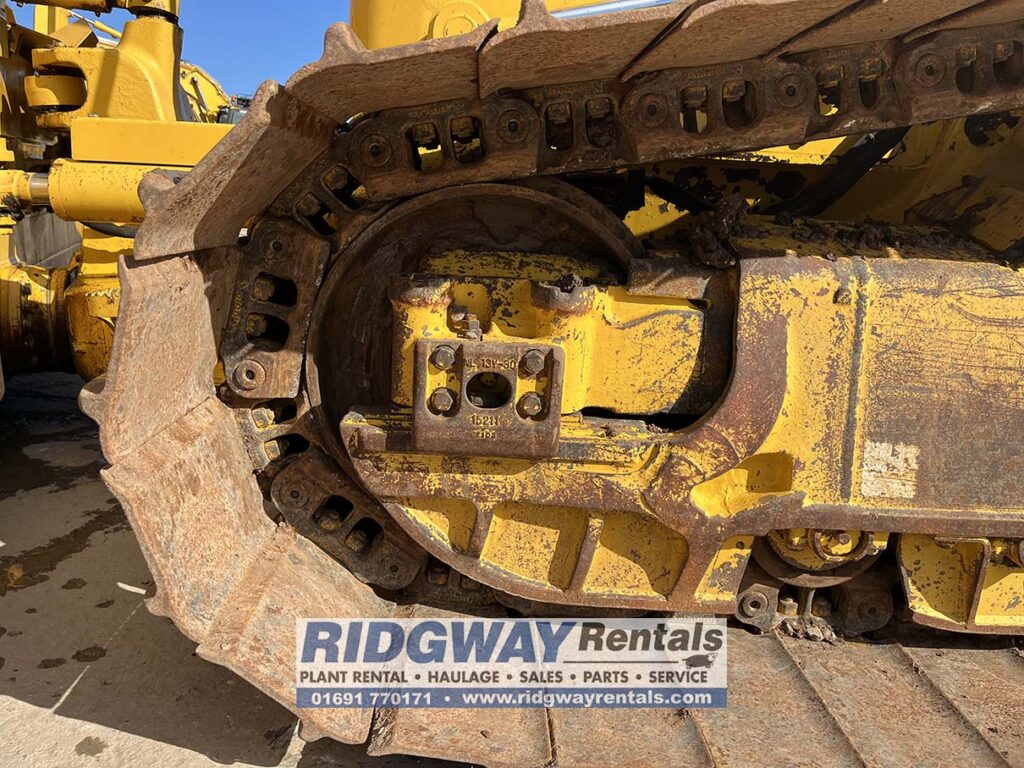

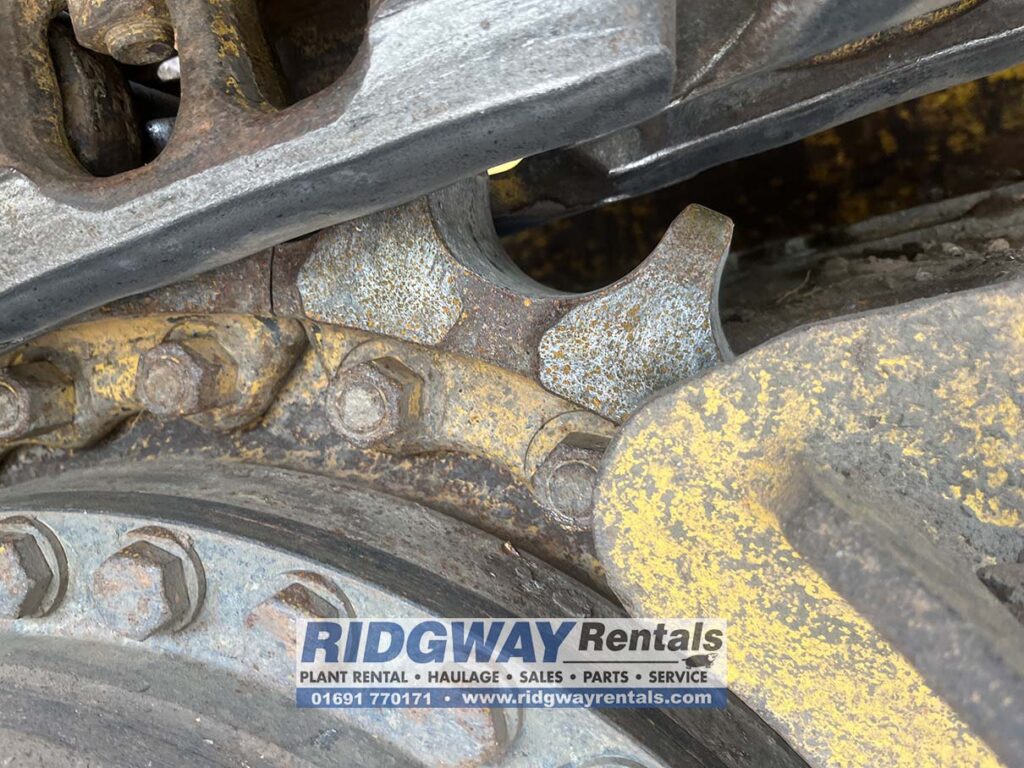

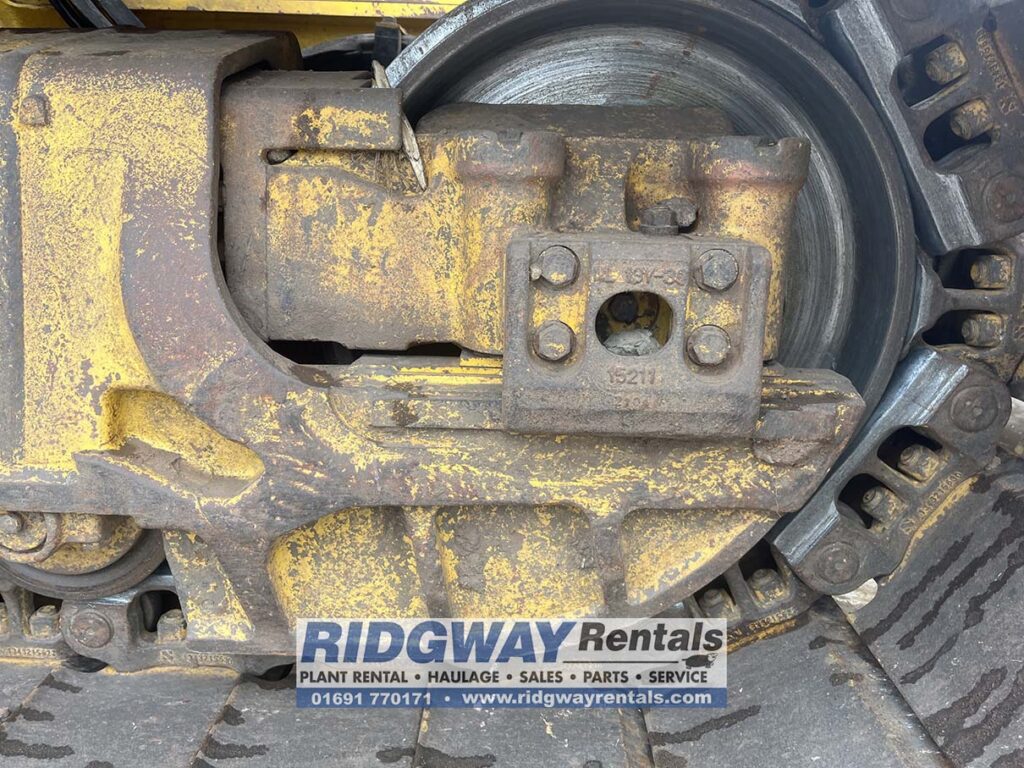

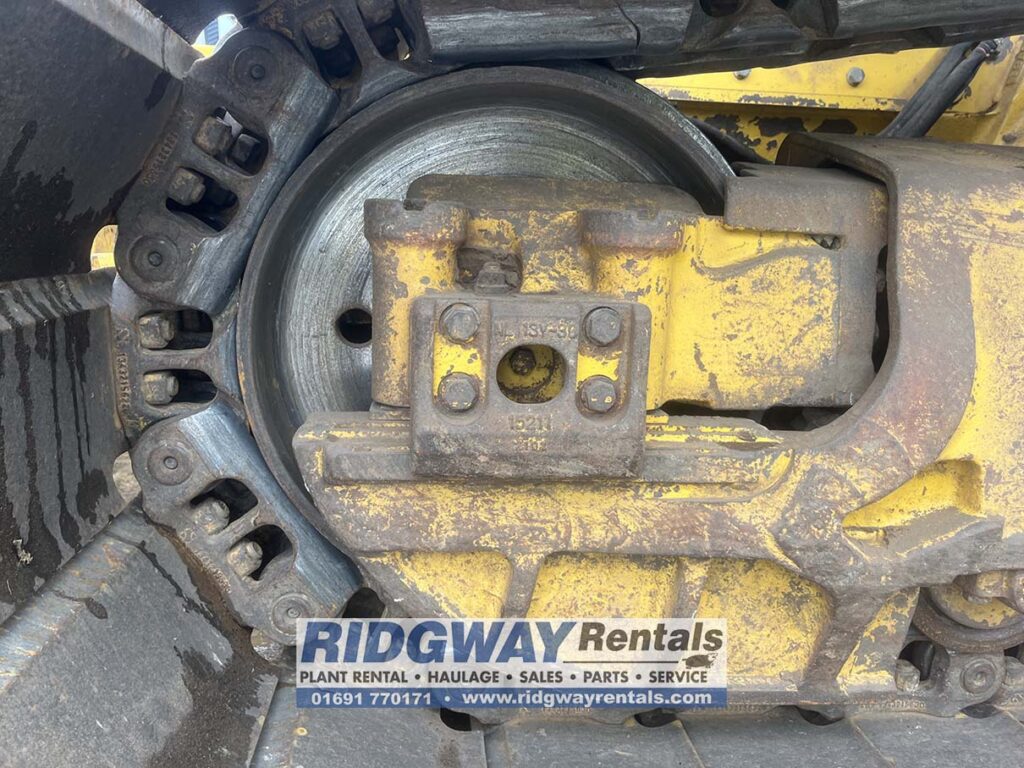

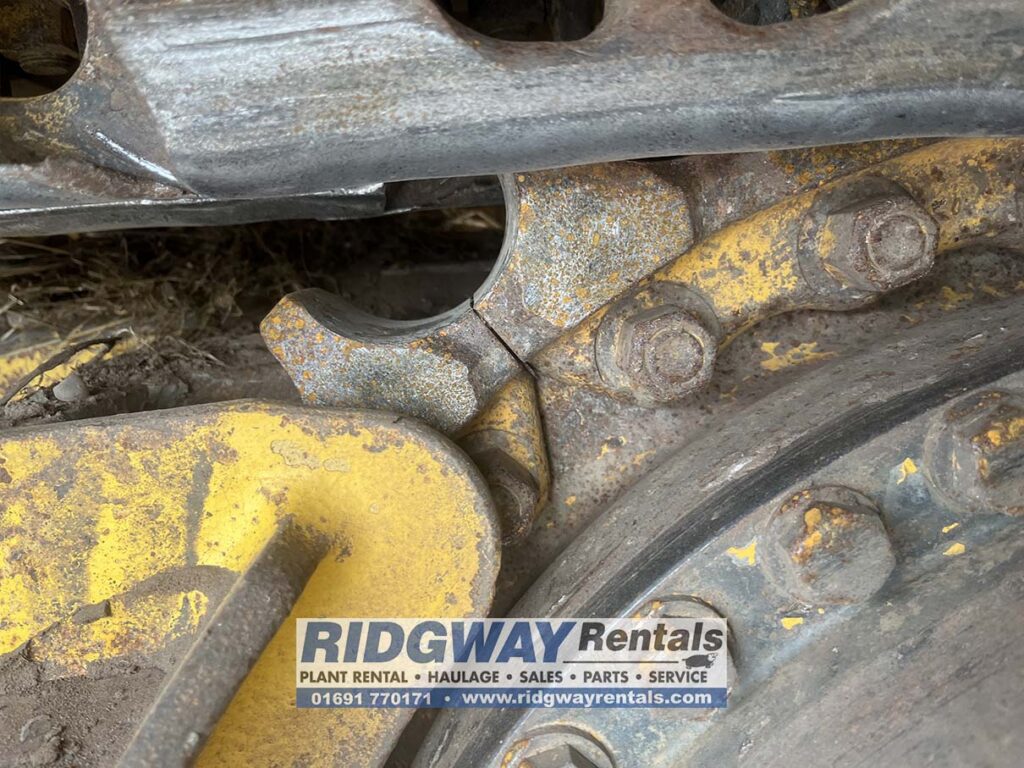

Komatsu’s low-drive Parallel Link Undercarriage System (PLUS) is extraordinarily tough, with excellent grading performance and stability. It features PLUS link assemblies, a highly reliable floating bushing concept, substantial track link height, superior oil seals and track guards that maximise undercarriage durability. For easier servicing, the equaliser bar’s centre pin is remotely greased. The segmented sprockets are notched to considerably improve the evacuation of mud and further increase the PLUS undercarriage lifetime.
The PXi undercarriage is ideal for working on soft surfaces. The wide shoes and PLUS link assembly ensure a large contact area between the machine and the ground for maximum stability, grading performance and undercarriage lifetime.
Innovative Intelligent Machine Control
The D61PXi-24 comes with a fully factory installed 3D Global Navigation Satellite System (GNSS) Machine Control system. Add-on components for machine control typically mounted on the blade are now replaced with a factory installed cab top GNSS antenna, an enhanced inertial measuring unit (IMU+), and with stroke sensing hydraulic cylinders. This integrated sensor package is robust and accurate. It eliminates the daily hassles of installing and removing antennas and cables from the blade, and the wear associated with it.
Automatic dozing from start to finish
While high-precision finish grading can be achieved by dozers with a conventional control system, the D61PXi-24 can also perform rough dozing in automatic mode. When rough dozing, the fully automatic blade control monitors blade load and adjusts blade elevation, to minimise track slip and perform high-efficiency dozing. Blade control adjusts to provide finish grade performance with high-level precision.
For more information on our Komatsu D61PXi Dozer For Sale
Call us on 01691 770171 or FREE on 0800 515155
Komatsu D61PXi-24 Operators Manual & User Manuals are available as well as full specification brochure
The D61 dozer is equivalent to the CAT D6
